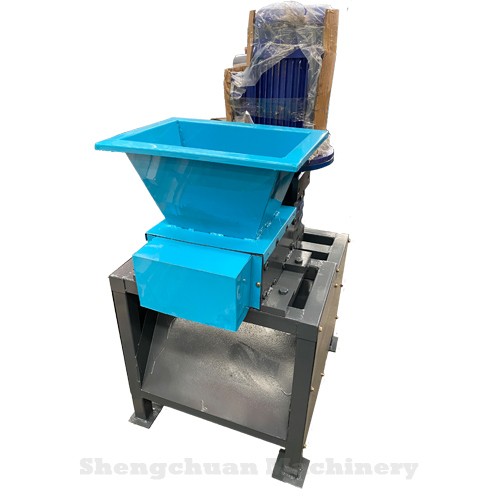

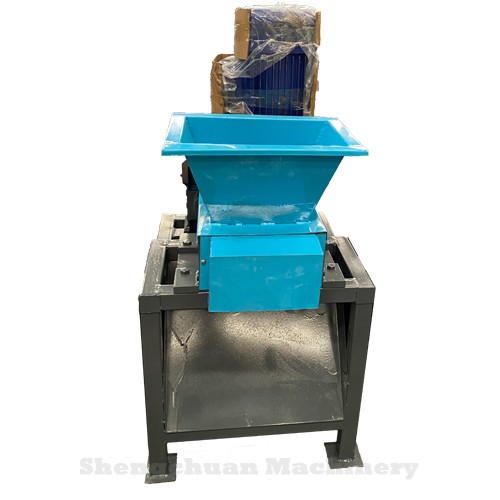

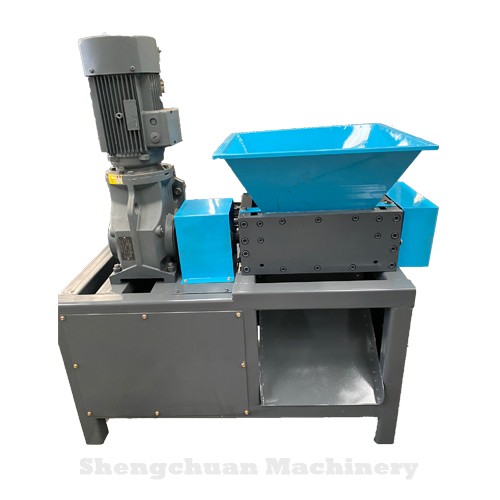

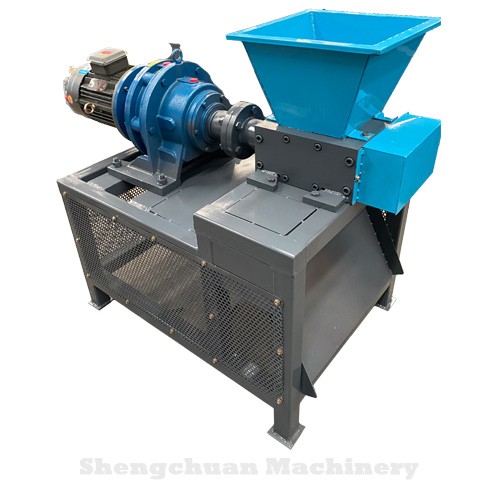

Single shaft shredder

Single-shaft shredders can meet the waste recycling requirements of various industries. They are suitable for recycling plastic, paper, wood, fiber, rubber, domestic waste, etc. There are many types of recyclable materials. Double single-shaft shredders are suitable for recycling various large solid materials, refractory materials, plastic containers and plastic buckets, and plastic pads. The discharge size can be as small as 20mm according to different needs, and various feeding hoppers can be provided according to customer needs. This equipment rotates the knife at low speed, has low noise, and is more energy-saving.

Working principle: The material enters the chassis from the feeding hopper. The pushing box pushes the material to the rotating knife roller under the push of the hydraulic cylinder. The rotating movable knife and fixed knife break the material. The crushed material falls through the screen and is then transported through auxiliary conveying equipment. To the next process or collect and package. The material enters the inside of the shredding box through the feeding system. The box carries a shredding blade. The pushing box pushes the material near the blade. The material is shredded into small pieces through the combined effects of tearing, extruding, and shearing of the shredding blade. The material is discharged from the screen holes.

Product advantages:

1. The blade is made of cold-working die steel, which has good strength, high toughness and high cutting performance. The blade has four cutting edges, which can be rotated 90° after wear and continued to be used.

2. The external bearing design is waterproof and dustproof, extending the service life of the bearing.

3. Hydraulic forced feeding, the speed is stable and adjustable, and the advancement is strong and uniform.

4. Hard-toothed surface reducer has high transmission efficiency, strong carrying capacity and low noise.

 Application scope:

1. Plastics-general plastics in injection molding, extrusion, film blowing and other fields, die blocks, etc.

2. Wood-wooden pallets, round logs, wood scraps, etc.

3. Paper-Document paper, packaging paper, cardboard, etc.

4. Cables-copper core, aluminum core and composite cables

5. Aluminum-cans, aluminum chips, etc.

6. Chemical fiber-carpet, labor protection clothing, etc.

7. Sponge-Industrial Waste

8. Composite materials-Glass fiber products, car windshields, sealant strips, etc.

9. Destruction-imitations (counterfeit products), substandard products, expired items, etc.
