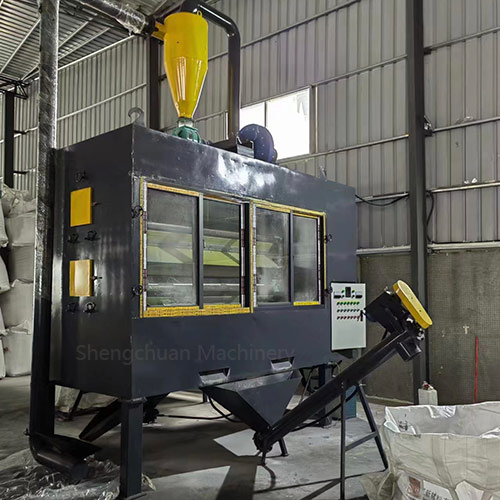

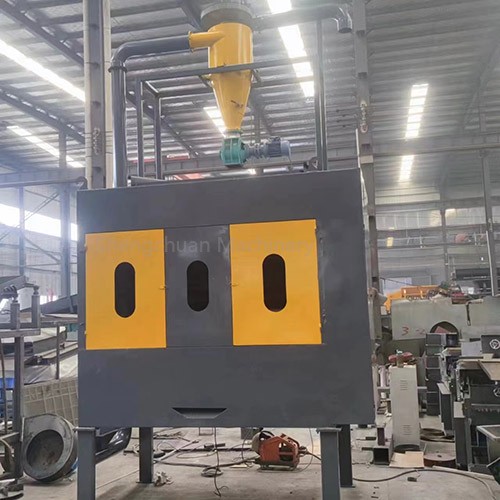

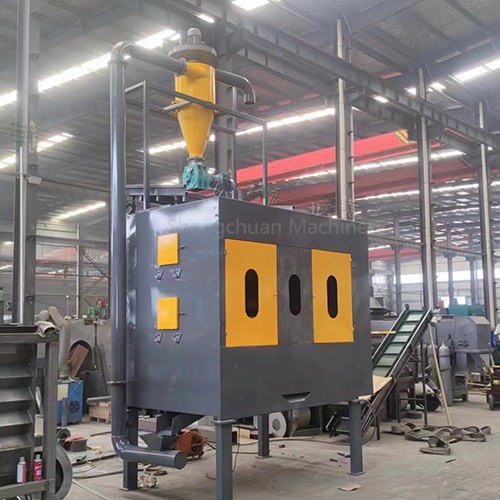

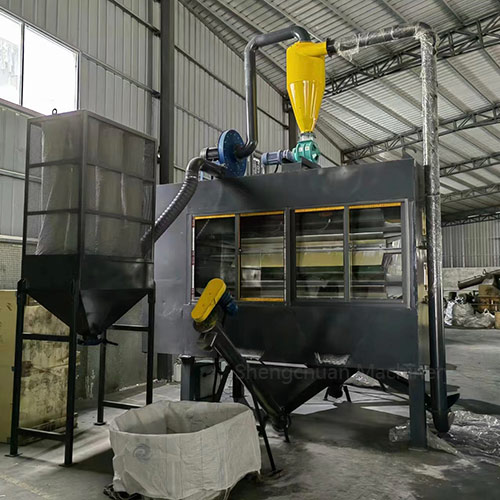

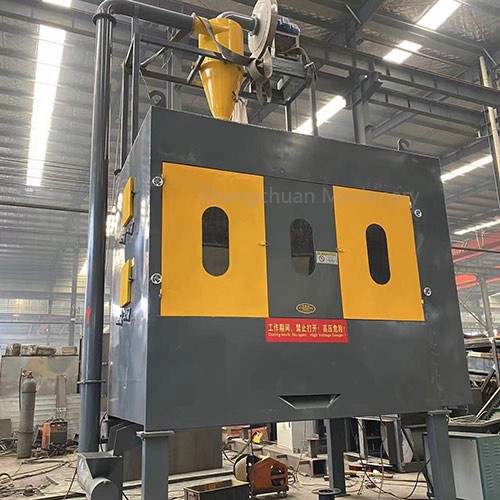

Electrostatic separator

Electrostatic separator:

can separate metal and non-metal, conductor and non-conductor mixed particles, as well as some minerals to improve the grade. For example, aluminum-  plastic sawdust separation of aluminum, copper-plastic wire skin extraction of copper, circuit board powder extraction of copper particles, grinding wheel      ash extraction of metal titanium, stainless steel, etc.; mineral extraction of tin, gold and so on.

Characteristics of electrostatic separation equipment:

1.The efficiency is high, and the separation effect is up to 99%.

2.The unit energy consumption of each ton of waste circuit board is only about 1x2 of similar products in China; complete sets of equipment per                 hour.Electrostatic separator.Electrostatic separator [1].The handling capacity is as high as 1 ton.

3.Less labor, automatic operation.

4.It covers a small area.The equipment is arranged flexibly.

Equipment advantage：

1.The feeding device of electrostatic separator is a key technology for sorting material purity.According to the different materials, the electric separator of our company adopts a unique feeding method, or uses a separate frequency conversion speed regulation to control the feeding, so that the material can enter the corona electric field evenly, and the good sorting effect of the material can be realized.

2. The twin-roll electric separator can select the plastic again on the second roll to improve the purity of the plastic.

3. The metal can also be selected again on the second roll to improve the purity of the metal.Compared with the single-roll electric separator, it save time  and labor, and the production capacity is improved.
4. As tens of thousands of volts of high voltage are produced inside the equipment, special attention should be paid to personal safety in the course of  operation.Even if the machine stops working, there is still a high voltage charge inside the equipment, which brings danger to the staff carelessly during operation, so in view of this situation, our company has specially designed the automatic discharge function to provide reliable security for the operation of the operators.
5. When the equipment is running for a period of time, a large amount of dust will be produced inside, which will directly affect the sorting effect. Our company has specially designed a dust blowing device to make the equipment always maintain a good sorting effect.

6. The electrostatic separator uses a stable high-voltage electrostatic power supply, which will change the voltage due to the influence of the weather tide and humidity or the peak time of electricity consumption, and the instability of the high-voltage power supply will affect the separation quality. Our company specially designed an automatic voltage regulating device to make the high-voltage power supply stable.
7. Each update of Longtai electrostatic separator takes into account safety and convenient maintenance, convenient operation and convenient use.Speed regulation and feed regulation are all frequency conversion control, and the national standard motor is matched.Easy to operate and easy to maintain.

1. Removal of non-ferrous metal materials from plastics: separation of aluminum-plastic materials (such as aluminum-plastic plates, aluminum-plastic pipes, drug plates, aluminum-plastic packaging materials, aluminum wires, aluminum-plastic shavings, etc., the separation purity can reach more than        99.5%) copper-plastic separation (separation of copper wire and cable, waste wire scrap materials, the purity can reach more than 99.7%).
2. Remove non-metallic minerals (sand, stone, ceramic, glass, asbestos, diatomite, limestone, kaolin, clay, etc.) from plastics.
3. Metal recovery and separation from all kinds of waste circuit boards, the metal recovery rate can reach more than 99.5%.
4. selection and purification of various mineral raw materials, and extraction of metals from various metallurgical and smelting metal slags.
5. separation of non-metallic minerals (such as quartz and feldspar, graphite, diamond, apatite, coal and asbestos, etc.).
6. purification and separation of all kinds of waste crystal silicon.
7. Extraction and purification of carbon from all kinds of fly ash.
8. Recovery of useful metals such as copper and aluminum from municipal solid waste.
working principle:

The electrostatic separator, also known as the electric separator, is discharged by the high voltage static electricity generated by the high voltage generator inside the equipment, and the material to be sorted is uniformly sent down to the rotary roller through a special blanking device.After the  conductor material is electrified, the electricity is put to the ground through the grounding rotary roller, and coupled with the inertia of the rotating roller, the conductor material is thrown into the conductor hopper.After being electrified, the non-conductor material is adsorbed on the surface of the rotating roller because of its poor electrical conductivity, and falls into the non-conductor hopper as the roller turns to the back and is swept down by a brush.Some of the conductor and non-conductor materials fall into the medium material hopper due to different reasons, such as roller speed, equipment baffle adjustment distance, material particle size and how much electricity is received, and enter the feeder and enter the blanking device again for sorting.

Applicable material:

1. Aluminum-plastic composite materials: separation and separation of aluminum-plastic composite materials, such as aluminum-plastic plate recycling, aluminum-plastic medicine board recycling, toothpaste skin, aluminum-plastic door and window scrap recovery, aluminum-plastic end, aluminum-plastic shavings, aluminum-plastic drill recovery, metal separation at the end of plastic and steel drama, etc.
2. Copper-plastic composite materials: scrap lines, copper-plastic wires are crushed and separated, and the plastic from the copper and rice machine contains a small amount (about 2-5%) of fine copper wire copper powder extraction.
3. The powder of the circuit board contains the separation and separation of copper-plastic composites and mixtures such as metal separation and purification.
4. Metal and non-metal separation, conductor and non-conductor separation.
5. Metal materials are extracted from grinding wheel ash: magnesium, nickel and other metal materials are extracted from grinding wheel ash.
6. Electric separation of minerals.
7. Carbon is extracted from fly ash.
8. Circuit board recycling, aluminum-plastic separation, copper-plastic separation, garbage sorting, waste recycling industry.
